ATR Options

21 Gallon CAFS System21 Gallon CAFS option

Together with the All Terrain Res-Q™ trailer you find the perfect solution for back country fire suppression along with providing a faster means of fire knockdown. CAFS systems provides lighter and more manageable hose lines because they are typically half the weight and longer hose lays are possible due to limited friction loss in a CAFS line. With that, firefighter fatigue is greatly reduced from using the heavier and higher pressure hose lines. Other advantages of CAFS systems include protection of exposures, preservation of evidence, faster cleanup because of the soap residue, and it has an extremely limited runoff quality resulting in a more environmentally friendly control of contamination. When used with the All Terrain Res-Q™ trailer, the result is a faster deployment of suppression capabilities while reducing the manpower needed to contain the fire. Unit comes complete with one air cylinder and a plastic storage box that contains 2 - 16 oz. plastic bottles for foam concentrate and a cylinder wrench. Spare bottle and mount shown in picture is extra.

Wildland KitWildland Kit for CAFS System

Our wildland kit provides a storage space for a broom and shovel as shown. This item is designed to be used with out 21 Gal. CAFS system shown above. Kit comes with broom and shovel shown along with a 1 inch nylon strap to secure tools while in transport.





ATR Litter CoverPatient Litter Cover

Our Universal Patient Cover for the All Terrain Res-Q trailers is now available. Attaches to the ATR trailer by 4 points by an aluminum tube that slips over the litter supports. The full lexan cover protects the patient from flying debris when in transport.

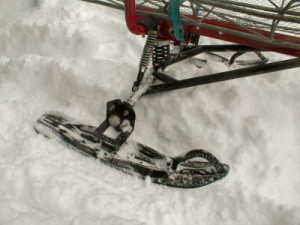

Ski Package for Winter OpsSki Package

Got snow? Well we have the answer for going out onto the trails with our trailer in tow. The ski package is for those who are towing the All Terrain Res-Q trailer behind a snowmobile/ATV out on packed trails. With the ease of changing a tire, you can mount the skis to any ATR trailer. Please note that for the best performance and safety, it is recommended that you stay onto a packed trail when towing behind a snowmobile.  Adjustments may be necessary to the suspension when using the skis on a hard packed surface.





Hose RollerHose Roller

One of the worst tasks at any fire scene is when you are done, rolling up the hose to take back to the station to clean and reload the truck. With the optional Hose Roller attachment, we take that back-breaking task and make it a breeze. Just insert the hose roller into the receiver tube on the rear of the ATR, and you're ready to roll hose. The hose roller was in-house CAD designed for flawless rolling of hose. You put one of the couplers between the forks and crank the handle and within seconds you'll have a perfect roll of your hose. Shown with the optional equipment tub that can carry your rolled hose back to the station.





Aluminum Equipment Tub

Equipment Tub

Shown here is the optional 2 ft. x 7 ft. aluminum equipment tub for carrying anything you'll need to just about anywhere. During brush fires you can carry Indian guns, brooms, shovels to where you need it.





ATR Rear SeatRear Seat

The rear seat for the ATR is designed for patient care while in transport back to the awaiting ambulance. It features durable square tube frame with a positive stop footrest, seatbelt and three different locations to adjust how close you sit to the stokes litter.  Seat available in the following colors: Black (Std.), Grey and Yellow.





Medical TrayMedical Tray

The medical tray is made from 18 ga. steel and powder coat painted with cinching straps to hold your medical equipment to the tray. It attaches to the ATR via the tubes that slip over the front uprights and attaches securely to the trailer via the 2 inch web strap.









Junkin LitterJunkin JSA-200 Stretcher

Yellow high-density polyethylene shell, supported by a stainless steel outer rail, permanently attached with stainless steel semi-tubular rivets. Features molded runners, fully exposed outer rail, non-absorbent foam pad secured to stretcher and four patient restraint straps. Ideal for unusually rugged rescue situations such as industrial, mining or construction. Patent Pending. DIMENSIONS: 84 1/2" L; 24" W; 7 1/2"

Snowmobile HitchSnowmobile Hitch

Snowmobile hitch for the ATR is constructed to be used when towing with a snowmobile. As hitches on snowmobiles utilize a smaller pin for towing trailers we have designed this hitch to alleviate that problem. With springs on either end to cushion the shock from snowmobiles taking off from a complete stop. To install this hitch into any of the ATR trailers, just remove the hitch pin in the coupler, pull the hitch out and insert the snowmobile hitch in it's place.

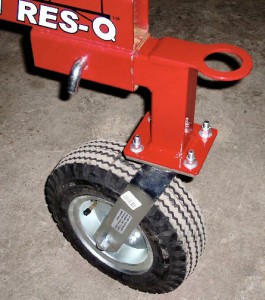

Front WheelATR Front Wheel

The front wheel is constructed to take the abuse. Using this option, you can maneuver by hand to get thru factories, large warehouses and the like. With very little effort you can push the trailer from the rear and the large 10 in. front wheel rolls smoothly over most obstacles. Features full 360 degree swivel, dual grease fittings (1 on swivel, 1 on wheel), 10 in. pneumatic rubber tire, towing ring for lowering and retrieving over embankment.









Hand WinchHand Winch Assembly

The ATR Hand Winch was designed for one person loading of patients.  By utilizing the rear receiver tube with a 'Y' shaped adapter.  One person can effectivly load a patient by themselves using the hand winch when it is attached to the litter.
